On a Ruger 10/22, the rail is only as secure as the receiver threads and the torque applied to them. The receiver’s factory threads require controlled torque, and the rail must sit against a surface where properly selected and stabilized walnuts help control environmental movement over time.

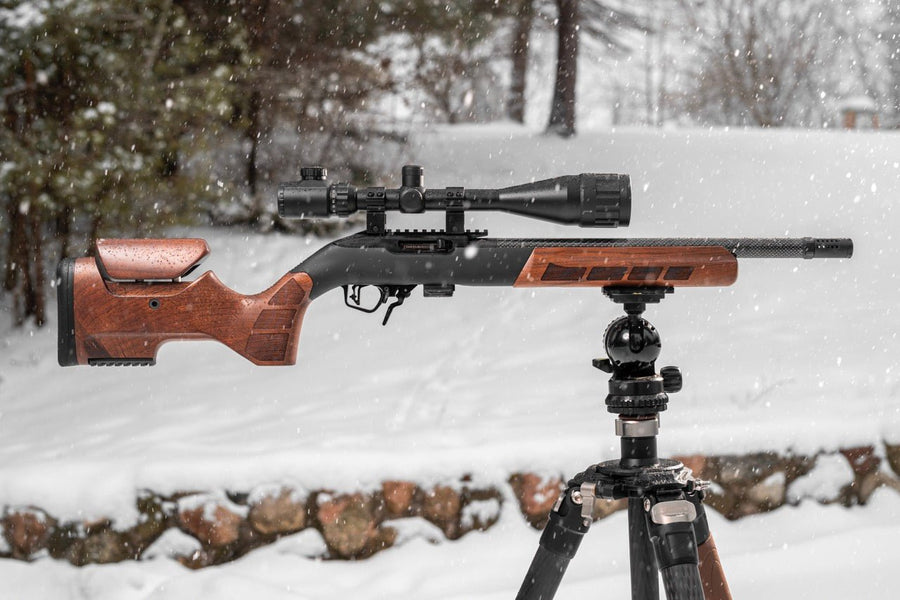

A WOOX chassis starts with High Grade American Walnut and an aluminum core built to hold alignment under recoil, handling, and seasonal change.
When the rail and rings are installed correctly, the optic aligns with the shooter’s natural position without forcing adjustments. The result is a mount that maintains alignment under handling, recoil, and environmental changes.
Phase I: Preparation of the Receiver
Before any installation begins, ensure the rifle is completely unloaded.
The Ruger 10/22 comes with pre-drilled and tapped holes on the receiver, typically fitted with small filler screws. These #6-48 threads are spaced for a 6.276-inch rail with a 2.57-inch center spread.
Clean the holes using isopropyl alcohol to remove oil and storage residue. A small amount of blue Loctite will secure the new Picatinny screws without stressing the aluminum.
With a WOOX Exactus chassis, the High Grade American Walnut and 7075 aluminum backbone maintain precise bedding tolerances through properly selected Walnut. The barrel seats without stress, keeping the optic and receiver working as a single structure once the mount is installed.
Phase II: Securing the Foundation
While WOOX 7-slot Picatinny Rail provides universal rail solutions for various platforms, the unique 6.27-inch footprint of the Ruger 10/22 receiver requires a dedicated interface. Choosing a high-quality, full-length Picatinny rail, those from EGW, ensures an interface that maintains alignment with the 0.001-inch bedding tolerances
Position your 10/22-specific rail forward on the receiver, ensuring the #6-48 screws align perfectly with the factory holes. For marksmen engaging in long-range rimfire disciplines, a 20 MOA rail is recommended to maximize your optic’s elevation travel.
Before installation, ensure all threads are clean. Apply a single drop of blue (removable) thread locker to each #6-48 screw to prevent vibration-induced loosening without sacrificing future serviceability.
The 10/22’s aluminum receiver demands controlled torque. Over-tightening strips the threads. Use the correct driver for your rail screws and torque them to 12-15 in-lbs depending on hardware, staying under 15 in-lbs to protect the receiver threads.
Technical Note: Stay under 15 inch-pounds depending on your specific hardware to protect receiver threads. Surpassing this limit risks stripping the aluminum threads, compromising the structural permanence and alignment that defines the WOOX standard.
Take a closer look at WOOX Exactus on Ruger 10/22
Phase III: Selecting the Rings
Most 10/22 setups use either 1-inch or 30mm tubes. Ring height depends on objective diameter, rail height, and barrel profile. Ring height usually falls in the medium range depending on optic and rail. Torque the ring caps to 17–20 inch-pounds unless your scope manufacturer specifies a narrower range.
Ring fit and torque directly affect optic alignment and tube integrity. Light torque preserves the scope tube, and a properly sized ring avoids unnecessary elevation of the optic. Medium rings on a 0.400" rail typically position common optics within correct eye alignment.
Phase IV: The Final Zero
Before setting the scope, place alignment rods in the rings to confirm rotational level. Only shim if the rifle uses a 20 MOA rail for extended-distance shooting. Bore-sight at 50 yards; confirm final zero at the range.
The stability of a WOOX chassis ensures that the relationship between receiver, rail, and optic remains unchanged over time due to the chassis structure and material stability.
Since 1937, Minelli craftsmen have inspected walnut grain for stability, discarding blanks that will not hold long-term alignment. Material selection and grain stability allow the chassis to be re-oiled without altering its geometry.
Final Fit Matters
A scope mount on a Ruger 10/22 performs as intended when three elements align:
- The rail sits square and is torqued inside Ruger’s limits.
- The rings match the optic and provide proper clearance.
- The stock preserves a natural cheek weld without compensation.
Those conditions remain stable for decades, as properly selected and stabilized High Grade American Walnut helps control environmental movement over time. Moreover, the rifle maintains structural alignment and consistent geometry over long-term use.
FAQs
What torque for Ruger 10/22 scope rail screws?
#6-48 screws torque to 12-15 inch-pounds max with T-10 bit and blue Loctite, exceed 15 and aluminum threads strip. WOOX action screws torque to 20-25 in-lbs (Hickory Workshop spec).
Best Picatinny rail for Ruger 10/22?
EGW 6.276-inch full-length rail with 2.57-inch center spread fits factory holes. 20 MOA version for NRL22. Pairs with WOOX Exactus High Grade American Walnut over 7075 aluminum.
Medium rings height for Ruger 10/22 scope?
0.550-inch bottom post clears the factory barrel. Match 1-inch or 30mm tube, torque caps 17-20 in-lbs.
Does WOOX chassis need special scope mount?
No. Standard Ruger 10/22 Picatinny. 0.001-inch bedding tolerances keep barrel geometry rigid for optic holdover. WOOX supports long-term maintenance through refinishing and tolerance inspection.
How to level scope on Ruger 10/22?
Alignment rods in rings pre-scope. Bubble level reticle to bore. Bore-sight 50 yards, range-zero. WOOX properly selected High Grade American Walnut helps control humidity effects for consistent cheek weld.
